| Logistics Warehouse Management System: WMS |
| A program that handles all tasks of the warehouse, such as rack and bin management, and picking and packing, in the warehouse. |
Introduction to Dandy WMS (Distribution Warehouse Management System) |
It is a program that handles all the tasks of the warehouse, such as rack and bin management in the warehouse, and picking and so on. If data reading is done through PDA and QR codes, you can register as a WMS program right away. |
| Logistics Warehouse Management System: WMS |
| A program that handles all tasks of the warehouse, such as rack and bin management, and picking and packing, in the warehouse. |
Dandy WMS can handle everything in the warehouse in real time from warehousing to shipping.
BIN management
The entire process from BIN management to inventory management is linked by reading bar codes with PDAs.

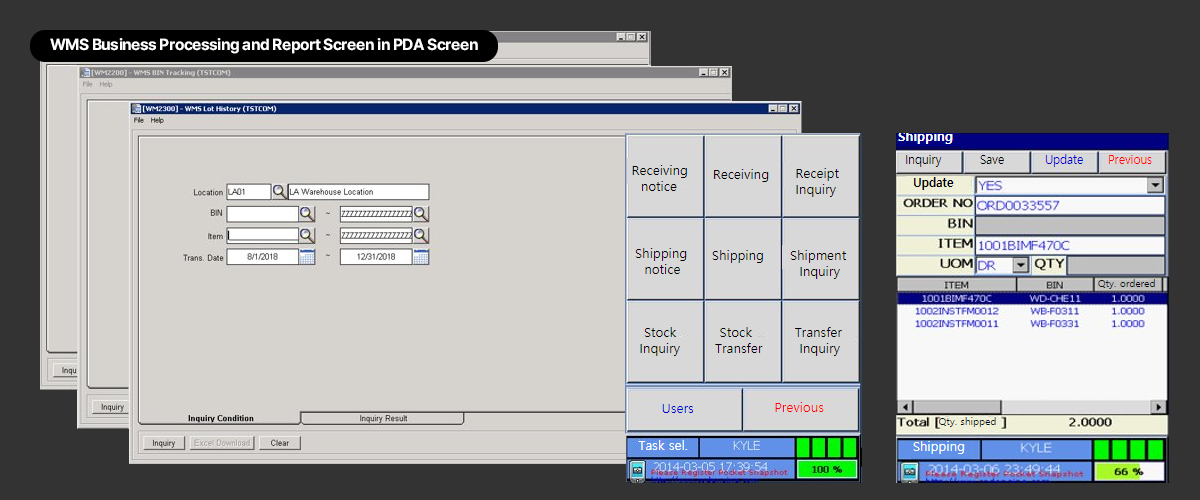

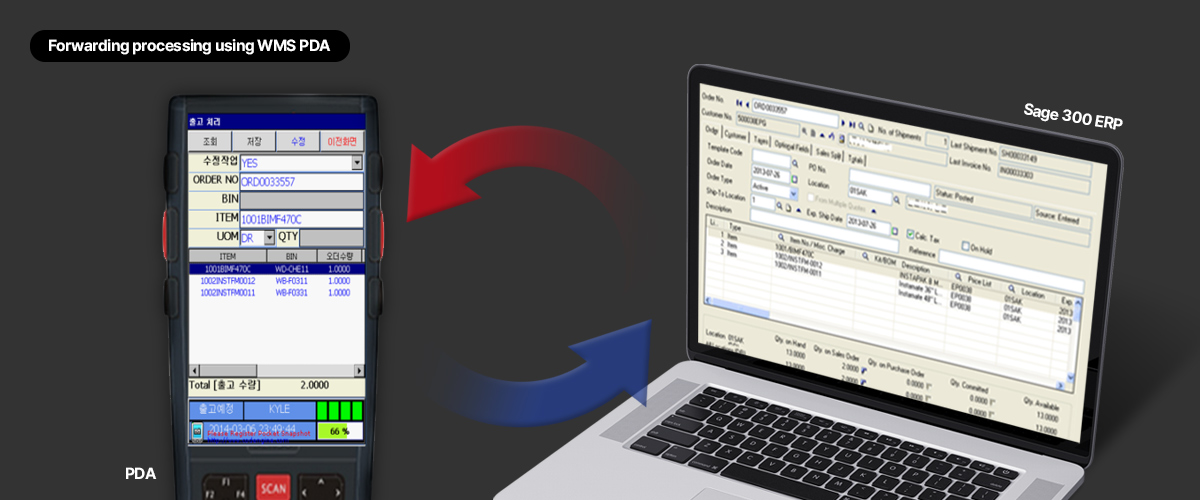

PDA Forwarding Screen
Factory data read by PDA is entered as DATA on the Sales Order Forwarding screen of Sage 300 ERP.
Introduction to Dandy WMS (Distribution Warehouse Management System) |
It is a program that handles all the tasks of the warehouse, such as rack and bin management in the warehouse, and picking and so on. If data reading is done through PDA and QR codes, you can register as a WMS program right away. |
Dandy WMS can handle everything in the warehouse
in real time from warehousing to shipping.
BIN management
The entire process from BIN management to inventory management is linked by reading bar codes with PDAs.
PDA Forwarding Screen
Factory data read by PDA is entered as DATA on the Sales Order Forwarding screen of Sage 300 ERP.

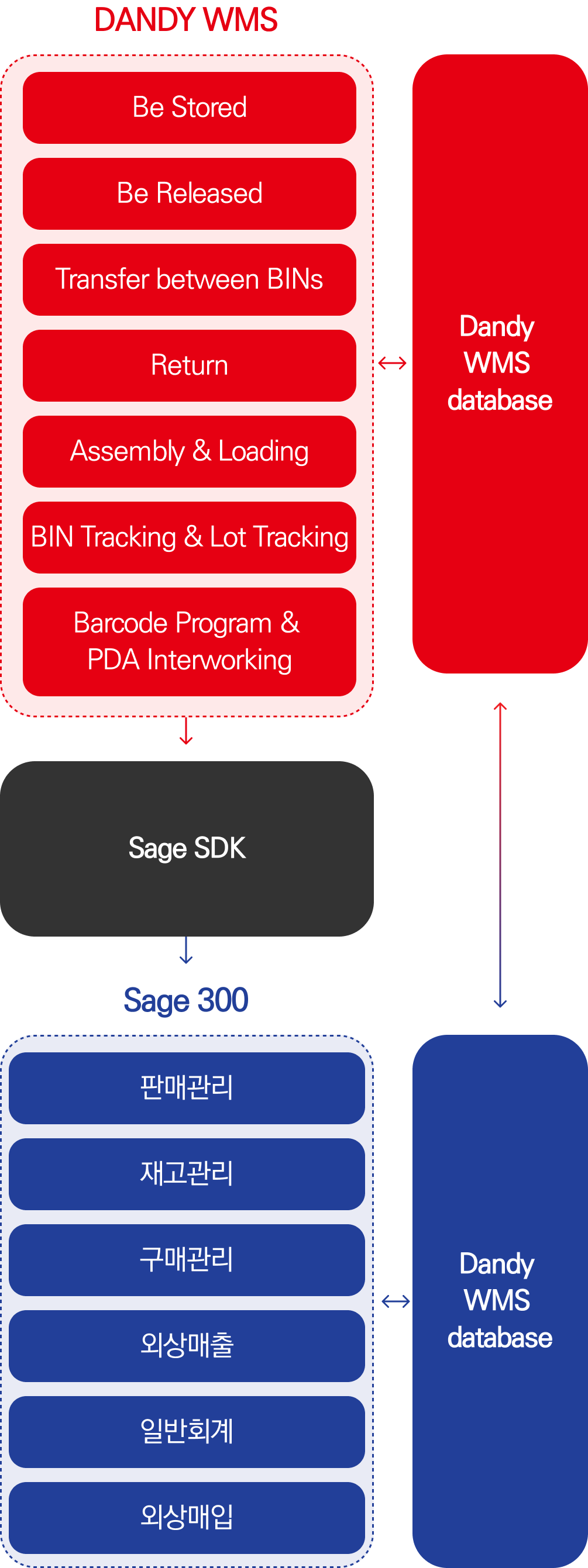

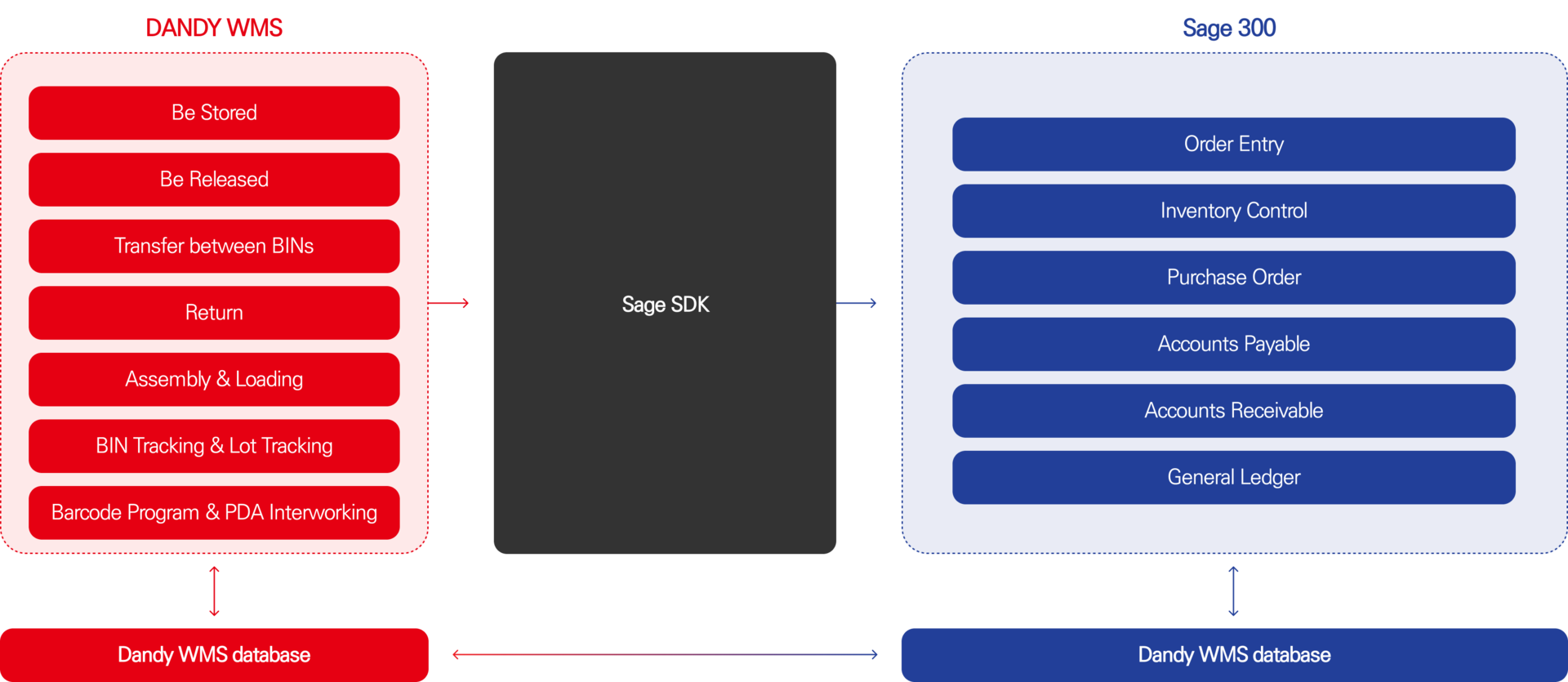

Developed as Sage's Software Development Toolkit (SDK),
it automatically works with Sage 300 like a whole body.
WMS data is automatically linked to Sage 300's inventory data,
enabling real-time inventory management.
Your language supports both Korean and English.

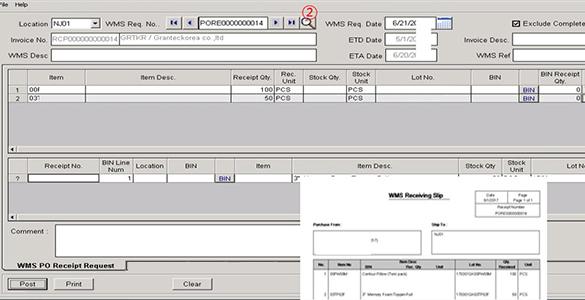

Purchase receiving request (WMS Receiving Slip)
WMS Receipt Request : Purchase Receiving Request Processing Screen
(*The screen that registers the results after placing the inventory in the bin in the warehouse)
1. The warehouse code appears according
to the WMS user ID.
2. Press the magnifying glass button to select an
open purchase receiving document.
3. WMS Req date is the date of purchase and
receiving request and is basically the same
as the date of access.
(*Date can be changed)
4. Enter warehousing-related information. Select
the relevant Bin, enter the actual quantity
received in the Bin, and press
the Request button.
5. If the Description, Reference, and Comment
fields are required, enter the relevant
information and press the Post button to
save the current status warehousing request
document
6. Press the Print button to output the final
saved WMS receiving slip.
Other warehousing request screen

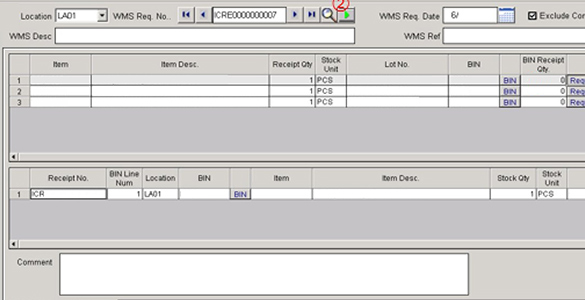

WMS other request : Other warehousing request processing screen
For other warehousing requests, register the results of placing a normal BIN after QC on the inventory returned to Damage location (e.g., LA01D, NJ01D).
1. The warehouse code appears according
to the WMS user ID.
2. If you press the Go button, the inventory
you have in the damage location will be
displayed.
3. Enter a number for a normal QC completed
item in the Bin receivet qty column and
press the Request button.
4. Enter warehousing-related information.
Select the relevant Bin, enter the actual
quantity received in the Bin, and press the
Request button.
5. If you need the Description, Reference, and
Comment fields, enter the relevant
information and press the Post button to
save the current status warehousing request
document.
6. Press the Print button to output the final
saved WMS receiving slip.
Picking slip output and picking operations

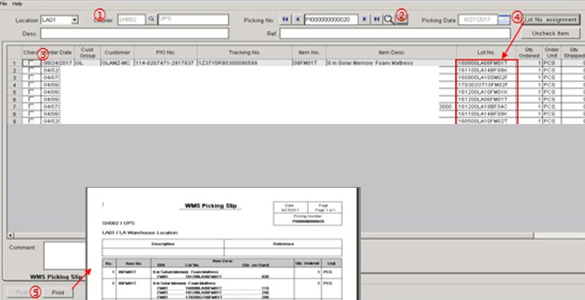

WMS picking slip : A screen that outputs a picking slip based on an open sales order.
1. The person in charge of WMS selects the
Courier after running the screen to output
the picking slip.
2. Press the button to display Open status
order and item information in the
bottom section.
3. Click on the box in the Check column for
the line you want to pick.
4. Press the button on the upper right to show
the Lot no present in the item's Default bin.
5. Press the Post button to create a Picking no
document, and press the Print button to pick
through the Picking slip.

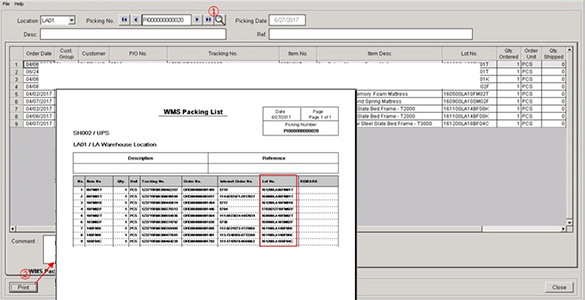

Packing list report
WMS packing list : Screen that outputs a packing list for the picking completion case.
1. Touch the magnifying glass icon to select
an existing picking document for packing.
2. Press the Print button to output the
packing list.
3. Click on the box in the Check column for
the line you want to pick.
4. For items that have issues with Lot no at the
current stage, write Lot no that makes a
difference in the Remark column
of the packing list.
5. For items with issues (approximately 15%),
we will proceed first during the next step,
Validation.

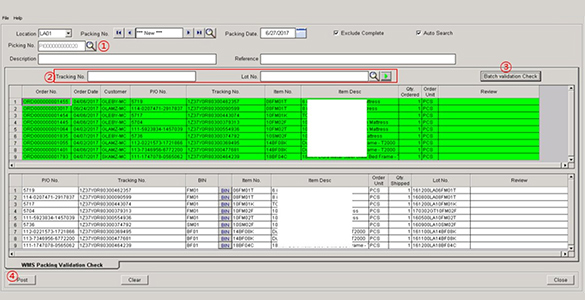

Packing Validation Check (Delivery Error Verification)
WMS Packing validation check : Screen verified before shipment to prevent delivery error
1. Press the magnifying glass to select the
Picking no to be verified.
2. Validation will be carried out first in the
existing way for issue items. Recognize
Tracking no and Lot no through the barcode
scanner.
(*In case of hand-written processing,
select Tracking no input and Lot no.)
3. Automatically process items without issues
by pressing the 'Batch validation check'
button.
4. Press the Post button to complete the
Validation document.

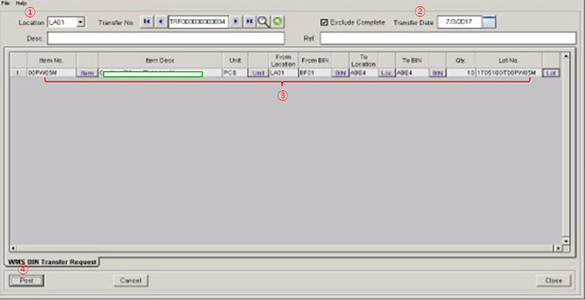

BIN transfer request
WMS BIN Transfer Request : BIN transfer request
(Inventory movement within or between the same warehouse) Processing screen
1. The warehouse code appears according to
the WMS user ID.
2. Transfer date shows the connection date
by default.
3. On the grid, press the Insert key on the
keyboard to enter the item you want to move,
the arrival BIN, quantity, and Lot number.
4. Press the Post button to create a Bin-to-Bin
inventory movement request document.
Real-time inventory inquiry by BIN/ITEM

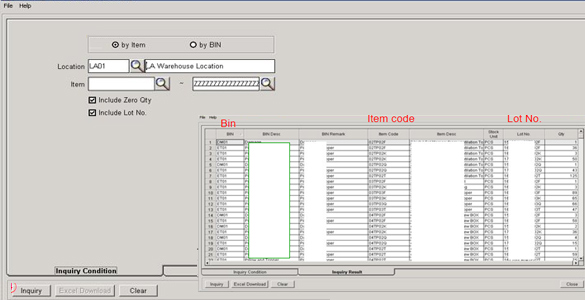

WMS BIN Detail : A program that inquires the amount of inventory held in real time.
1. Depending on the selection of the query
criteria option, the filtering option changes.
2. Enter values in the Warehouse and filtering options to view.
3. Include zero qty : Include Lot No with items
with current
quantity of 0 : Add Lot no column to result
4. Press the Inquiry button to make an inquiry.
5. Press the Excel Download button to extract
the results of the inquiry into Excel.
Track inventory increase or decrease during a specific period (including Lot number)

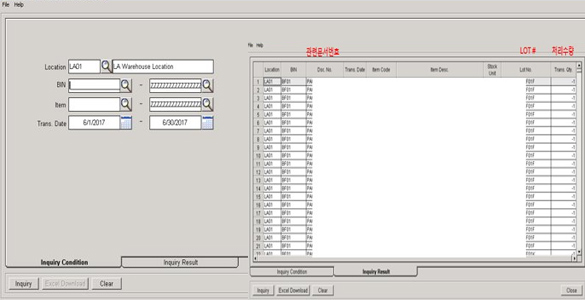

WMS LOT History: A screen that inquires inventory increase or decrease during a specific period (*Lot # included)
1. Specify the query conditions for the report.
- Select Location.
- Defines the lookup range for the BIN.
(If necessary)
- Defines the lookup scope for the item.
(If necessary)
- Trans. date defines the date of the lookup
range (if required)
2. Press the Inquiry button.
3. Press the Excel download button to extract
the results of the inquiry into Excel.
Simultaneous Deployment of Sage 300 and Dandy WMS
Learn how development partners can improve your business
A 'total solution specialist' that provides collaborative solutions with solution partners.
Purchase receiving request
(WMS Receiving Slip)
WMS Receipt Request : Purchase Receiving Request Processing Screen
(*The screen that registers the results after placing the inventory in the bin in the warehouse)
1. The warehouse code appears according to the WMS user ID.
2. Press the magnifying glass button to select an open
purchase receiving document.
3. WMS Req date is the date of purchase and receiving request
and is basically the same as the date of access.
(*Date can be changed)
4. Enter warehousing-related information. Select the relevant Bin,
enter the actual quantity received in the Bin, and press
the Request button.
5. If the Description, Reference, and Comment fields are required,
enter the relevant information and press the Post button
to save the current status warehousing request document.
6. Press the Print button to output the final saved WMS
receiving slip.
Other warehousing request screen
WMS other request: Other warehousing request processing screen
For other warehousing requests, register the results of placing a normal BIN after QC on the inventory returned to Damage location (e.g., LA01D, NJ01D).
1. The warehouse code appears according to the WMS user ID.
2. If you press the Go button, the inventory you have in
the damage location will be displayed.
3. Enter a number for a normal QC completed item in
the Bin receivet qty column and press the Request button.
4. Enter warehousing-related information. Select the relevant Bin,
enter the actual quantity received in the Bin, and press the
Request button.
5. If you need the Description, Reference, and Comment fields,
enter the relevant information and press the Post button
to save the current status warehousing request document.
6. Press the Print button to output the final saved WMS
receiving slip.
Picking slip output and picking operations
WMS picking slip : A screen that outputs a picking slip based on an open sales order.
1. The person in charge of WMS selects the Courier after
running the screen to output the picking slip.
2. Press the button to display Open status order and
item information in the bottom section.
3. Click on the box in the Check column for the line you want
to pick.
4. Press the button on the upper right to show the Lot no
present in the item's Default bin.
5. Press the Post button to create a Picking no document,
and press the Print button to pick through the Picking slip.
Packing list report
WMS packing list : Screen that outputs a packing list for the picking completion case.
1. Touch the magnifying glass icon to select an existing
picking document for packing.
2. Press the Print button to output the packing list.
3. Click on the box in the Check column for the line you
want to pick.
4. For items that have issues with Lot no at the current stage,
write Lot no that makes a difference in the Remark column
of the packing list.
5. For items with issues (approximately 15%), we will proceed
first during the next step, Validation.
Packing Validation Check
(Delivery Error Verification)
WMS Packing validation check : Screen verified before shipment to prevent delivery error
1. Press the magnifying glass to select the Picking no to
be verified.
2. Validation will be carried out first in the existing way for
issue items.
Recognize Tracking no and Lot no through the barcode
scanner.
(*In case of hand-written processing, select Tracking no input and Lot no.)
3. Automatically process items without issues by pressing
the 'Batch validation check' button.
4. Press the Post button to complete the Validation document.
BIN transfer request
WMS BIN Transfer Request : BIN transfer request
(Inventory movement within or between the same warehouse) Processing screen
1. The warehouse code appears according to the WMS user ID.
2. Transfer date shows the connection date by default.
3. On the grid, press the Insert key on the keyboard to enter
the item you want to move, the arrival BIN, quantity, and
Lot number.
4. Press the Post button to create a Bin-to-Bin inventory
movement request document.
Real-time inventory inquiry by BIN/ITEM
WMS BIN Detail : A program that inquires the amount of inventory held in real time.
1. Depending on the selection of the query criteria option,
the filtering option changes.
2. Enter values in the Warehouse and filtering options to view.
3. Include zero qty : Include Lot No with items with current
quantity of 0 : Add Lot no column to result
4. Press the Inquiry button to make an inquiry.
5. Press the Excel Download button to extract the results of
the inquiry into Excel.
Track inventory increase or decrease during a specific period
(including Lot number)
WMS LOT History: A screen that inquires inventory increase or decrease during a specific period (*Lot # included)
1. Specify the query conditions for the report.
- Select Location.
- Defines the lookup range for the BIN. (If necessary)
- Defines the lookup scope for the item. (If necessary)
- Trans. date defines the date of the lookup range (if required)
2. Press the Inquiry button.
3. Press the Excel download button to extract the results of
the inquiry into Excel.
Simultaneous Deployment of Sage 300 and Dandy WMS
Learn how development partners
can improve your business
A 'total solution specialist' that provides collaborative solutions with solution partners.
| CEO : Kyung Pyo, Hong Business registration number : 120-86-08241 Company Address : (08502) Room 212, 608, Gasan Digital 1-ro, Geumcheon-gu, Seoul (Gasan-dong, Kolon Digital Tower Aston) Representative phone : 1688-2578/+82-2-594-2912 Fax: +82-594-2917 Email : info@dandykorea.com | |
 |  |
| Copyright ⓒ 2022 Dandykorea All rights reserved. | |
CEO : Kyung Pyo, Hong Business registration number : 120-86-08241 Company Address : (08502) Room 212, 608, Gasan Digital 1-ro, Geumcheon-gu, Seoul (Gasan-dong, Kolon Digital Tower Aston) Representative phone : 1688-2578 / +82-2-594-2912 Fax: +82-594-2917 Email : info@dandykorea.com | |
 |  |
| Copyright 2022 DandyKorea co,.ltd. all rights reserved. | |
